Home>oubao products>Magnetic Core Drill

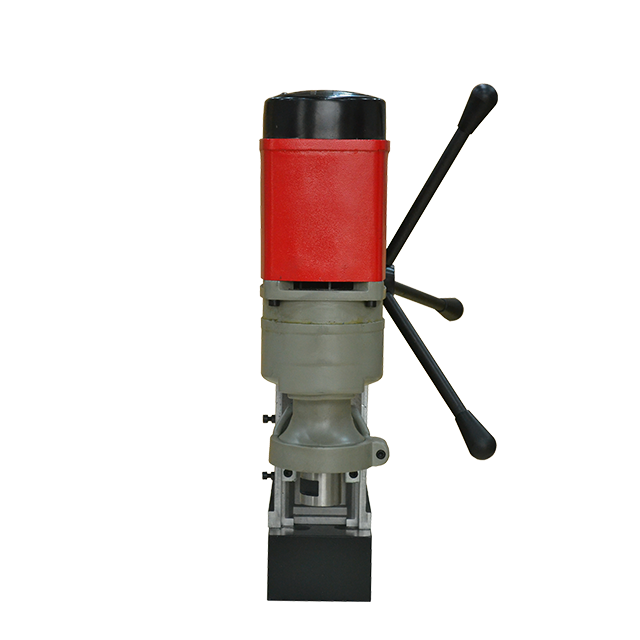

Magnetic Core Drill
Gear speed regulation
Achieving maximum efficiency of different dia
Humanized handle design with good hand feeling
High magnet force
TECHNICAL PARAMETER
 Core drill dia(mm)
 Twist drill dia(mm)
 Tapping drill dia(mm)
 Rated Voltage(v) Rated Frequency(Hz) Rated Input Power(w) Max attraction(N)
 No-load Speed(rpm) Cutting depth(mm)
 Morse taper
 Stroke(mm)
 Net/Gross Weight(kgs) Packing Weight(cm)
OB-32C 70 32 M18 380~ 50-60 1900 15000
 150/280 60 MT4 210
 44/52
 59.5*23*51
OB-32RC 70
 32 M18
 380~ 50-60 1900 15000
 150/280 60 MT4 210
 44/52 59.5*23*51
OB-38C 85 38
 M22 380~
 50-60
 2100 15500 135/250
 65 MT4
 220 44.5/52.5
 59.5*23*51
OB-38RC 85 38
 M22 380~
 50-60
 2100
 15500 135/250
 65 MT4
 220 44.5/52.5
 59.5*23*51
OB-49C 95 49 M30 380~
 50-60
 2300 16500 120/220
 70 MT4
 230 45/53
 59.5*23*51
OB-49RC 95 49 M30 380~
 50-60
 2300 16500 120/220
 70 MT4
 230 45/53
 59.5*23*51
